AirDrain Drainage Pet Relief Area Synthetic Turf on Aggregate

MichaelBeanartificial grass, blog, Green Roof, pet play area, pet relief area, Projects, Synthetic Turf

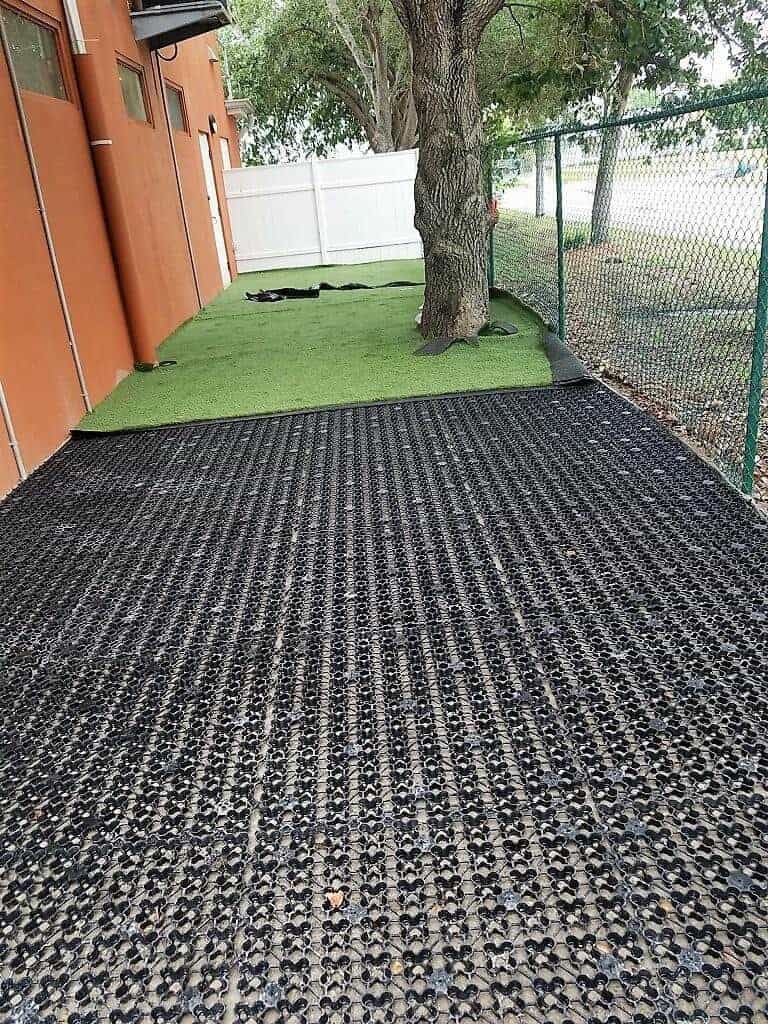

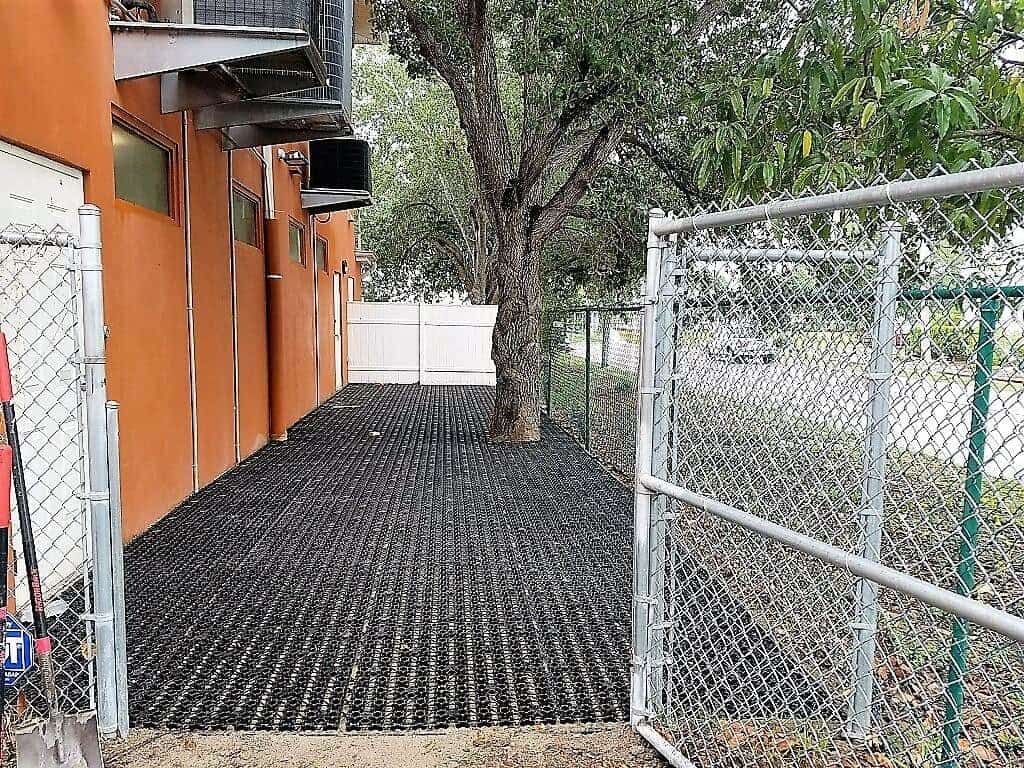

AirDrain Drainage for a Pet Relief Area on Synthetic Turf with 4 inches of compacted aggregate

Since 2002 and with over 1,000+ K9 Pet Relief areas installed across the nation. AirDrain Drainage is the ideal artificial grass drainage system used in dog day care facilities, pet playgrounds, airport dog potties and general use common areas, for dogs all across America.

Over the years, many architects and engineers have asked us just how fast will the AirDrain grid drain.  Our reply has always been that the AirDrain is only limited by what is above it and the exit drains.  Due to the fact that the area of an AirDrain part is 1” inch high and has a 92% air void.

Recently, our AirDrain grid was tested using the ASTM D 4716 Hydraulic Transmissivity Standard Test Method. The testing was done using plates on top and bottom of the AirDrain part, setting them to the required slope and adding water from the high side of one end down the slope. AirDrain was draining so fast they had to modify their testing equipment to accommodate the volume of water AirDrain could move!

As it turns out there is practically no resistance to drainage using the AirDrain grid?  The most important factor to consider is the percentage of slope that the AirDrain is sitting on.

To put this in perspective of rainfall, AirDrain can handle anything that Mother Nature throws at it.  On a nearly completely flat surface (1/2% slope) AirDrain will drain 2.85 inches of rainfall in one minute.

For example, it could rain over 171 inches in an hour and AirDrain could drain it on a 1/2% slope. AirDrain can also hold .578 gallons of water per sqft. if needed until it can evacuate to the perimeter exit drains.

No other product on the market comes close to AirDrain’s ability to drain a project, it’s not even close.

So when you see the claims of manufacturers rainfall per hour drainage, ask them if they have the test that really shows a products real world drainage capability.

Made with 100% post industrial recycle content AirField uses the highest quality materials for the AirDrain Geocell. With a 1 inch high 92% air void space underneath your synthetic turf.

You are able to wash away any unwanted waste left behind if needed by installing a flushing system around the perimeter of the grid.

This system is easily installed and attaches to any water source with inexpensive pvc or rubber piping.

Low cost, easy to install, DIY drainage, makes AirDrain the ideal synthetic grass drainage system for kennels, dog boarding and pet facilities, dog parks, vet clinics, and even in your own backyard. Helps provide a surface area that looks and feels great to the dogs!

Pet play areas are installed every day in public and private facilities across the world. Whether you utilize natural or artificial grass, the AirField System is a stress-free way to turn any common space into a fun place for people and their beloved K9 friends.

Made in the USA !
