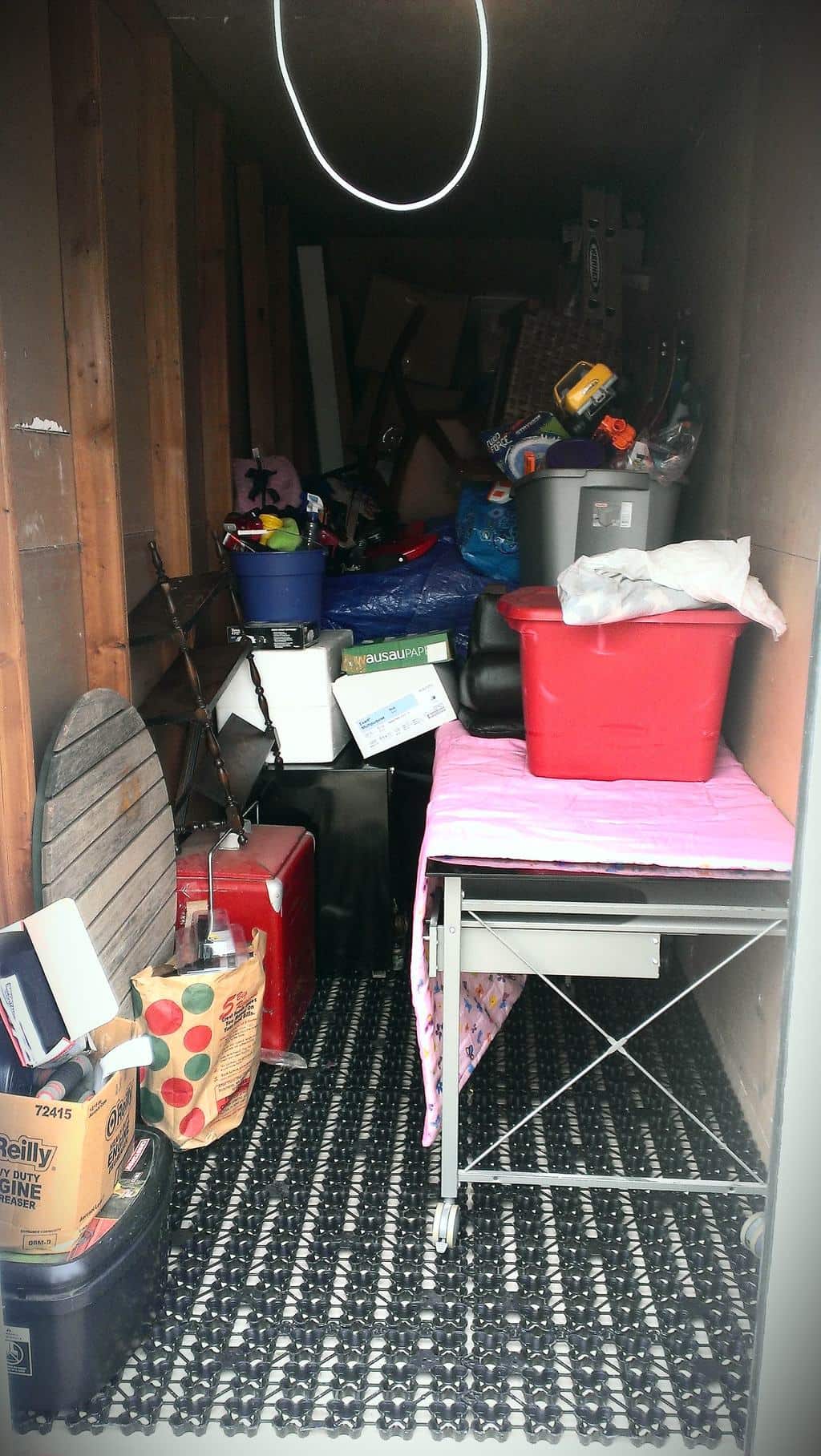

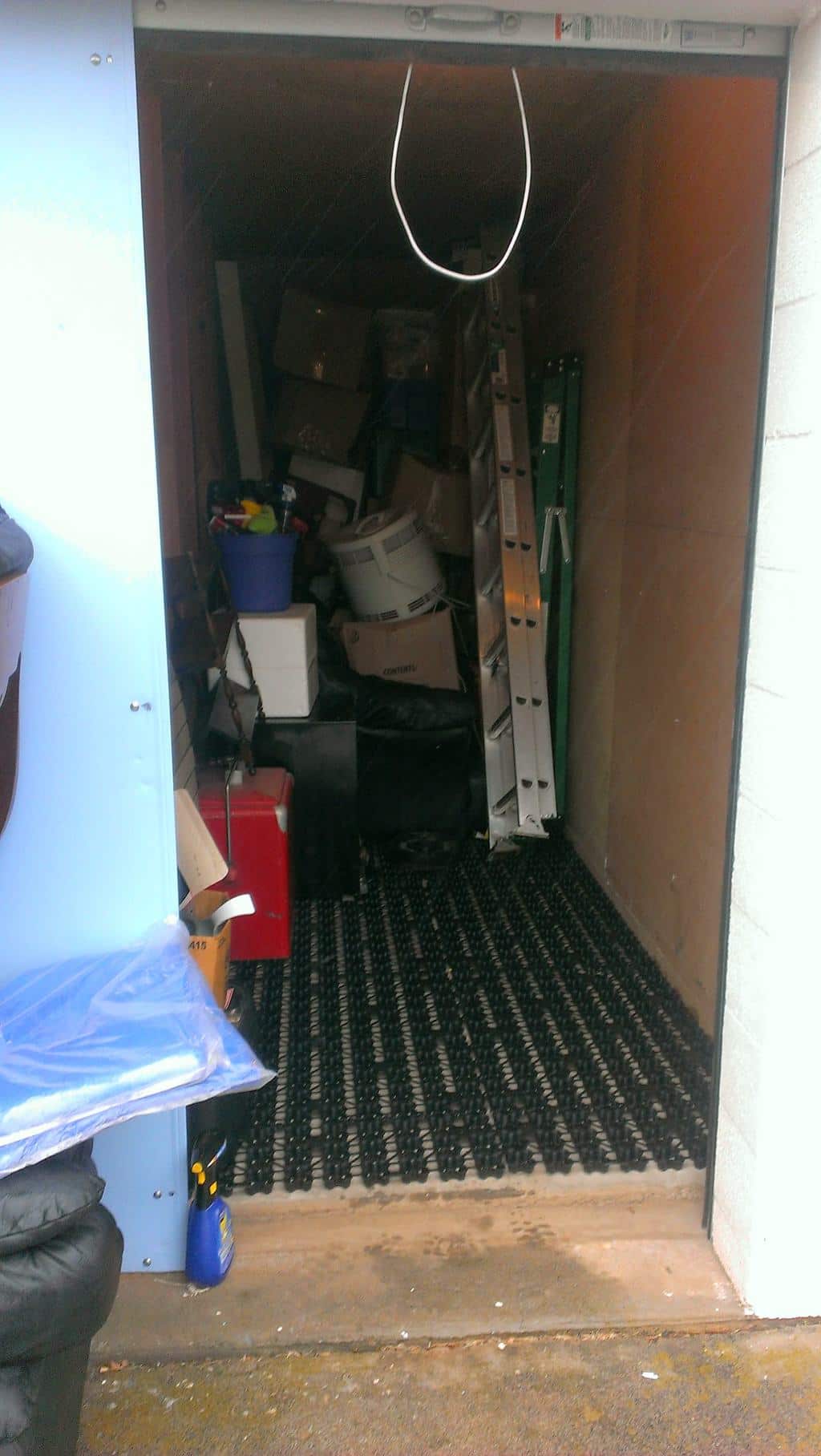

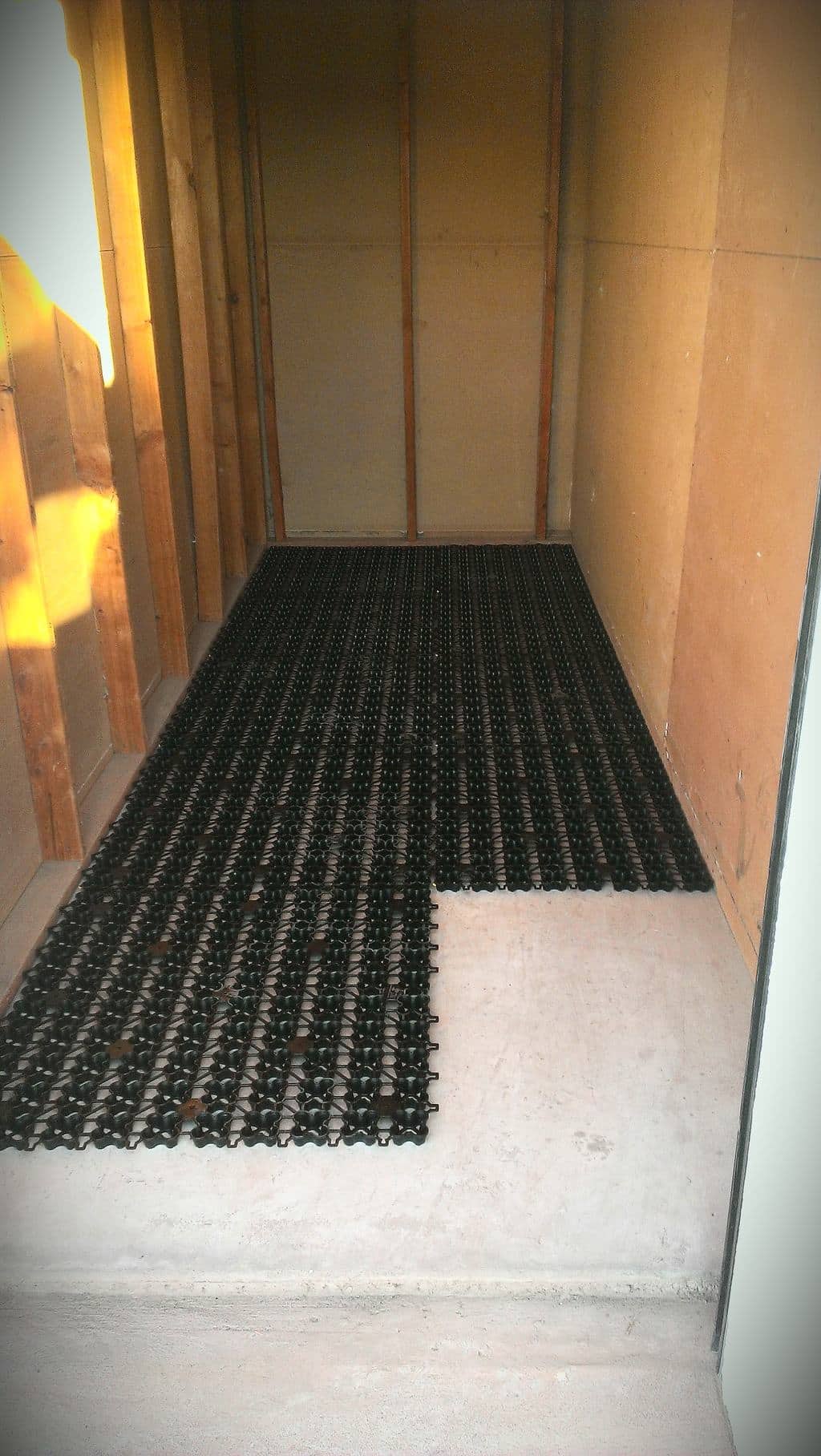

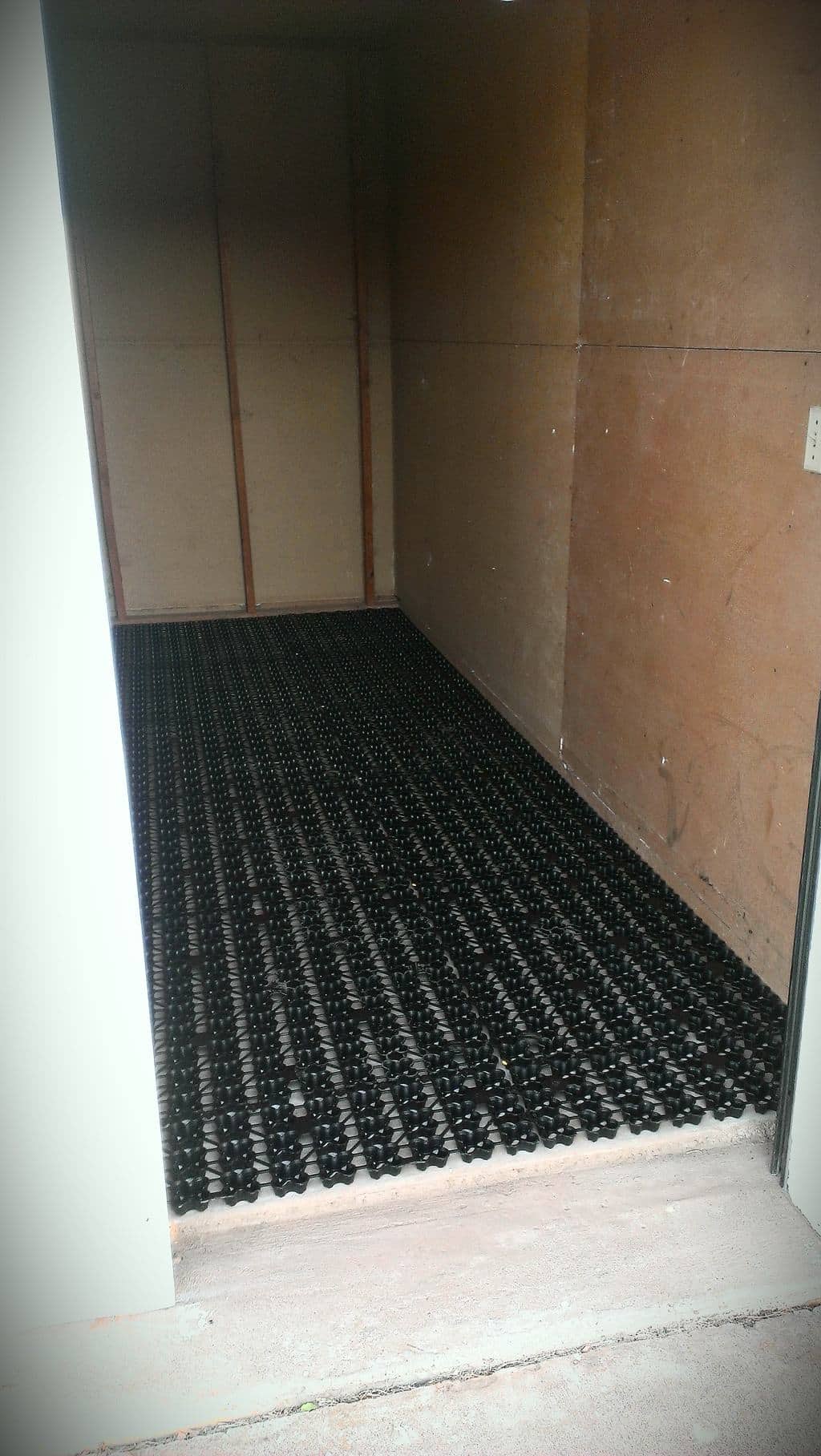

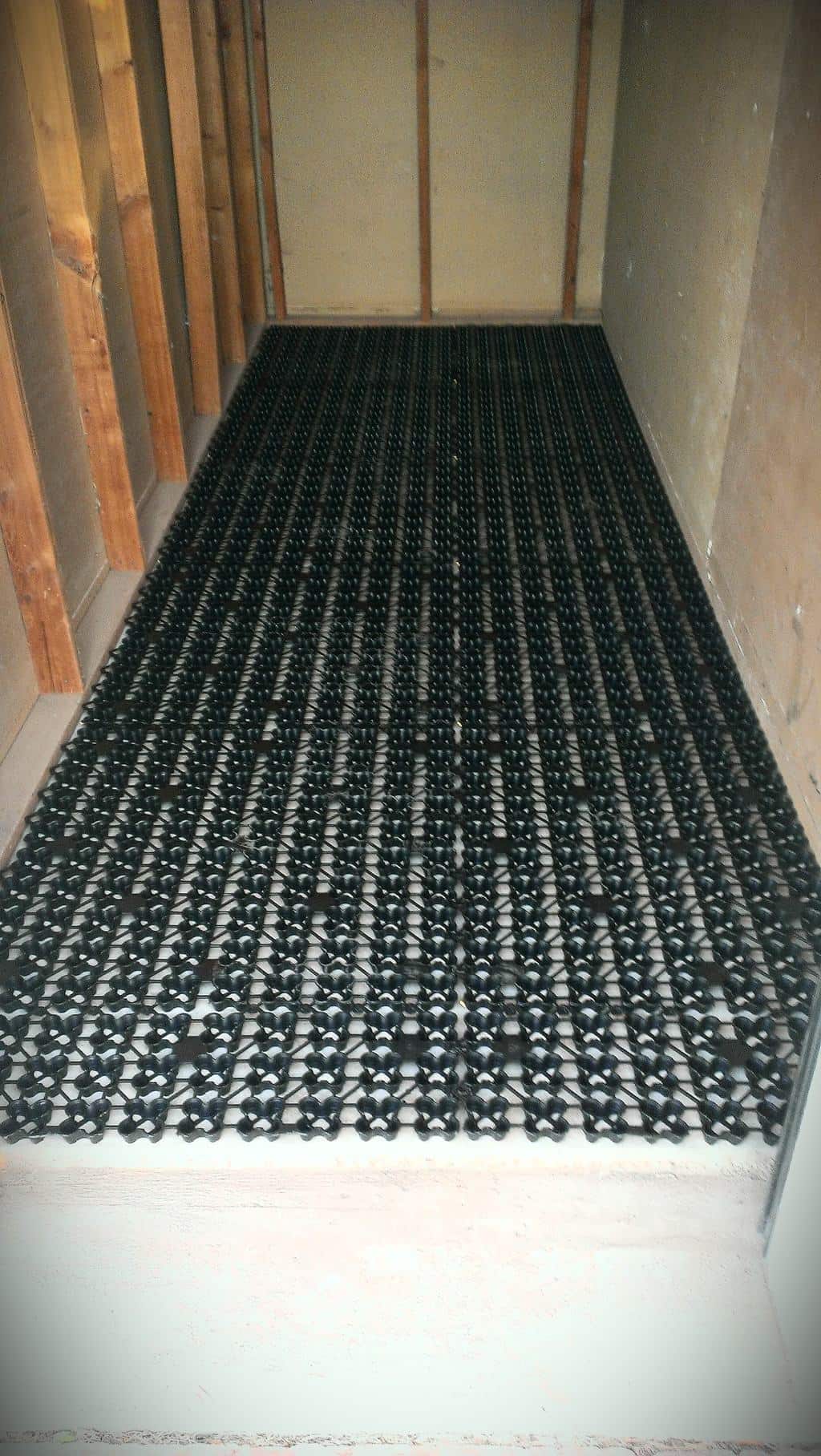

AirDrain- Alternate uses such as storage units for keeping boxes and equipment off the ground. In basements to help protect belonging’s from water occurrences. Place equipment or anything of weight or value on to elevate it off the ground.
AirField Systems, LLC
8028 N May Ave, Suite 201 Oklahoma City, OK 73120 (405) 359-3775
www.airfieldsystems.com
AirDrain Geocell
Unit Panel Specifications:
Size: 32″ x 32″ x 1″
Weight: 3.1 lb
Strength: 233 psi (unfilled)
6747 psi (filled)
Resin: 100% Recycled (PIR) Copolymer with Impact Modifier “No Break” Polymer Material
Color: Black
(3% carbon black added for UV Protection)
Yellow
Indicator Tab
Scale 0.12:1
AirDrain Cross Section
Typical For AirDrain Grass Systems
AirDrain Geocell
Anchor Platforms (13 Total)
ASTM and ISO Properties 1
Physical
Nominal Value Test Method
Specific Gravity
0.940 ASTM D792
Melt Mass-Flow Rate (230°C/2.16 kg)
20 g/10 min ASTM D1238
Mechanical
Nominal Value Test Method
Density
57.490 lb/ft3 ASTM D1505
Tensile Strength (Yield, 73°F)
2,145 psi ASTM D638
Tensile Elongation (Yield, 73°F)
16% ASTM D638
Flexural Modulus (73°F)
100,175 psi ASTM D790
Compression Strength (73°F)
233 psi unfilled ASTM D6254
Impact
Nominal Value Test Method
Notched Izod Impact (73°F, 0.125 in)
ASTM D256
Thermal
Nominal Value Test Method
Deflection Temperature Under Load 264 psi, Unannealed
160°F ASTM D648
Expansion/Contraction Index1
Temperature Humidity
Length Width
100°F 98%
31.881” 31.817”
-5°F 0%
31.765” 31.713”
Change
.116” .104”
Joint Expansion/Contraction Capacity
.420” .572”
Safety Factor
362% 550%
Examples of Usage
Application Required Strength
Safety Factor
Auto 40 psi
x 168
Truck 110 psi
x 61
aboratory testing conducted by TRI/Environmental, Inc., TSI/Testing Services, Inc. and Wassenaar.
General Information
General
Construction Injection Molded Copolymer
Composition Copolymer Polypropylene Using an Impact Modifier
Dimensions 31.784” x 31.880” x 1.000” (7.03 sq ft.)
Unit Weight 3.1 lbs.
Material Resin Pellets
Shipping
Parts Per Pallet 114
Pallet Dimensions 33” x 33” x 48”
Pallet Weight 390 lbs.
Area Coverage Per Pallet 798 sq. ft.
Pallets Per Trailer 114 (3 wide x 2 tall x 19 deep)
Area Covered Per Trailer 90,972 sq. ft.
1
nt l
| 100% Post Manufactured Content | |
| Recycled The AirDrain GeoGrid is made of 100% post-manufactured material, you can feel good about helping the planet while adding valuable LEED Points to your project! We also add an impact modifier for incredible strength and superior performance in extreme heat and cold – on top of the already durable AirDrain design. AirDrain Co-Polymer with an Impact Modifier Performance and Temperature Durability Attached you will find the specification of the resin used to produce both the 32 x 32 and the 32 x 18 Geo cells. This material is a co-polymer polypropylene that is 100% recycled resin. In order to be able to produce a consistent recycled resin a PIR (post industrial resin) is used for the base resin. This is the only way to produce a consistent material as opposed to a PCR (post consumer resin) which is dependent on the consumer to supply a consistent material. Using the PIR as a base resin 3% carbon black is added to insure good UV stabilization and metallocene (an ethylene base material) is used as an impact modifier. Impact Modifier The impact modifier is added in an amount to achieve a 10.0 Notched Izod Impact which comfortably qualifies this material as a NO BREAK material (4.0 and greater are normally considered no break material). The AirDrain resin offers an advantage over many ethylene and HDPE products since the AirDrain resin is often superior when it comes to pliability, warping and internal stress related issues. Referring to the attached specification sheet you will notice that all testing is done to specific ASTM Standards. Resin Blends AirDrain’s blend of resins gives it the ability to perform in extreme temperatures. AirDrain does not need a temperature above 50 degrees Fahrenheit to be installed or warmed in the sun to be pliable on site for install. In addition, AirDrain’s unique resin blend also helps prevent breakage and cracking in extreme temperatures, thus giving it the ability to withstand repeated freeze thaw cycles. Airfield posts its resin content and performance values with ASTM test methods and guide lines to measure the properties of our grid. |
